Is there a fitting housing or case that may surround the wireless switch?It looks slightly odd, naked as it is and pressing it is not quite comfortable.
JaneYu 2023-02-18 22:02:14 58 Views7 Replies Is there a fitting housing or case that may surround the wireless switch?
It looks slightly odd, naked as it is and pressing it is not quite comfortable.
Would it be possible to remove the wire antenna and replace it with a coil type? I'm trying to make a small remote switch out of it, but the antenna needs to be more compact. Other than that, this is a fantastic product! I will be ordering at least 100 more and 20 receiver boards if these pass my testing!
JaneYu You can summarise your requirements into a bespoke product requirement letter and send it to:
[email protected]
We will assess the feasibility of your requirements.
However, the MOQ of customised products is usually 500~1000pcs.
I cannot introduce it to TEL0146 receiver modules. As a receiver, I tried ev127 single channel receivers on the market and they did not recognize me. I tried it with the RX480 receiver module and it didn't work. I followed all the steps on the TEL0146 page, but I could not match it with the recipients.
JaneYu Can you record a short video of your pairing process and send it to the
[email protected]
so that we can check if you have missed any tiny details?
Hello,

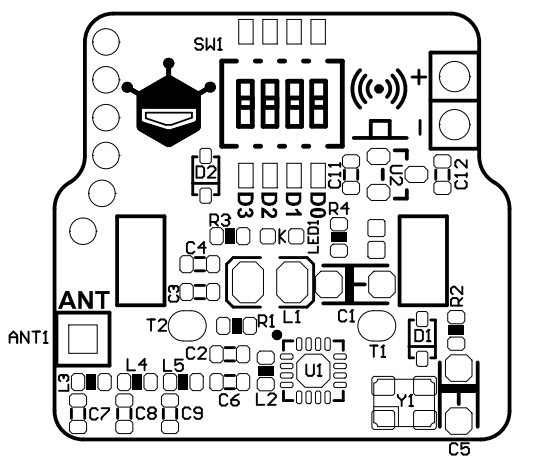

Which resistor on your the board or schematic is the bleed resistor? I believe is it R4 the 330k resistor but I would like to be sure.
JaneYu The discharge resistors are R4 and R2. R4 is used to dissipate the energy generated when the button is pressed, while R2 is used to dissipate the energy generated when the button is released. https://uploads.disquscdn.c...
